In-depth analysis of PCB surface treatment technology: performance comparison and application choice between ENIG and hard gold plating

In the world of modern electronics manufacturing, surface treatment technology is a critical link in ensuring product reliability, performance, and longevity. Among them, electroless nickel plating (ENIG) and hard gold plating are two widely used and distinctive processes. Although they both belong to the category of "gold plating", they have significant differences in principle, performance, and application scenarios, and together form the cornerstone of precision electronic interconnection.

ENIG: Reliable and universal

ENIG is a chemical deposition process that involves electroless plating a nickel-phosphorus alloy layer on a copper pad and then impregnating it with a thin layer of gold through a displacement reaction. Its core advantage is its excellent flatness and weldability. As an effective diffusion barrier layer, the nickel layer can prevent the migration of copper to the gold layer and ensure long-term welding reliability. The outermost thin layer of gold, typically 0.05-0.15μm, ensures the pad's resistance to oxidation during storage, providing an ideal surface for soldering.



ENIG has an extremely flat surface, making it ideal for soldering modern precision components such as high-density interconnect (HDI) boards, ball grid arrays (BGAs), chip-scale packages (CSPs), and more. Its process is mature and the cost is relatively controllable, so it occupies a dominant position in consumer electronics, communication equipment, computer motherboards and other fields. However, the risk of the "black disk effect" (weld brittleness due to corrosion of the nickel layer) needs to be strictly controlled in the process.

Hard Gold Plating: A professional guardian of durability and wear

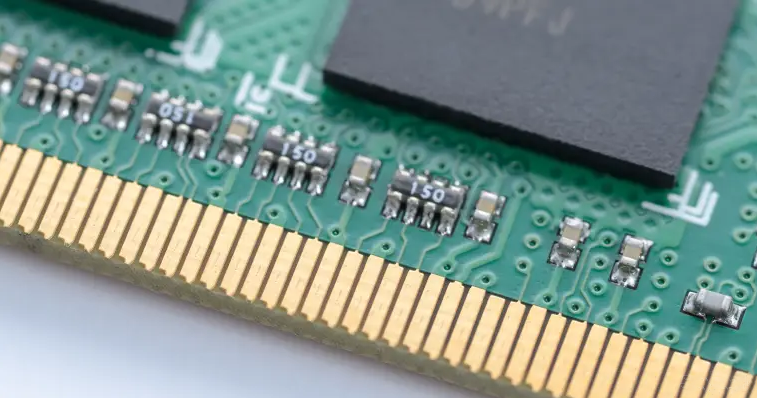

Hard gold plating usually refers to cobalt-gold or nickel-gold alloys deposited through the electroplating process, which has a much thicker gold layer than ENIG (usually 0.5-2.5μm or even thicker), and has high hardness and strong wear resistance. Its core value is not in welding, but in providing long-lasting and stable electrical contact performance.

As a result, hard gold plating is the preferred choice for "functional contact surfaces" and is widely used in areas that require frequent insertion and unplugging, sliding, or mechanical stress. For example, mobile phone battery contacts, communication backplane connectors, gold fingers (card edge contacts), test points, switch contacts, and contact parts of microelectromechanical systems (MEMS). Its robust surface can withstand hundreds of thousands of plugs and unplugs without wearing out, ensuring long-term stability in signal transmission. However, the process cost is higher, the surface flatness is relatively poor, and the thick gold layer is not conducive to welding (brittle gold-tin intermetallic compounds that are prone to the formation).

The choice between ENIG and hard gold plating is essentially a trade-off between design goals and cost-effectiveness. In a nutshell:
Choose ENIG when the primary requirement is to achieve highly reliable, high-precision permanent welding with high surface flatness.
Choose hard gold plating when the primary need is to ensure long-term electrical connection reliability, wear resistance and oxidation resistance under repeated mechanical contact.

On actual high-end printed circuit boards (PCB), a combination of the two is often seen: ENIG handles the solder area, while hard gold protects specific connector fingers. This division of labor and cooperation reflects the development trend of refined and functional surface treatment technology in modern electronic manufacturing. Understanding the characteristics of the two allows you to make the most accurate and economical decisions based on the specific electrical, mechanical and environmental requirements of the product.
