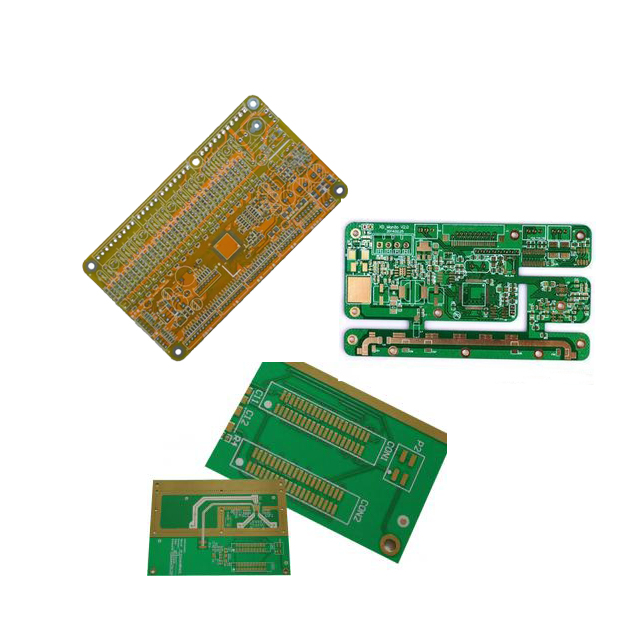

Rogers PCB assembly
2024-01-24
Rogers PCB are commonly used in high-frequency electronic devices such as wireless communication systems, satellite communication equipment, radar systems, microwave antennas, etc. It has the characteristics of low loss, low dielectric constant, low dielectric loss factor, and good dimensional stability, which makes it perform well in high-frequency environments.
In the PCB assembly process, the use of Rogers' PCB materials can provide the following benefits:
Low Loss:
Rogers' PCB materials feature low dielectric losses, which means less energy loss when transmitting signals. This is important for high-frequency applications to improve signal reliability and transmission distance.
Thermal stability:
Rogers' PCB materials are resistant to deformation and degradation at high temperatures. This makes them ideal for use in high-temperature applications such as aerospace and automotive electronics.
Dimensional Stability:
Rogers' PCB materials have excellent dimensional stability, i.e., they maintain their shape and size under varying temperature and humidity conditions. This is important for applications that require high accuracy and reliability.
Multi-layer stacking:
Rogers' PCB materials can be used for multi-layer stacking, allowing for higher levels of integration and performance by combining different layers of materials and boards.
The above is related to Rogers PCB, but due to the high material cost and relatively complex manufacturing process, it is often used in applications where performance is critical. When designing and manufacturing Rogers PCBs, factors such as material selection, laminate construction, wire layout, impedance control, and more need to be considered to ensure the reliability and performance of the circuit.
Overall, a Rogers PCB is a special printed circuit board designed for high-frequency applications that meets the performance requirements of high-frequency electronics through the use of Rogers materials.
