Advantages and Functions of Mixed PCBA Assembly
2026-03-20

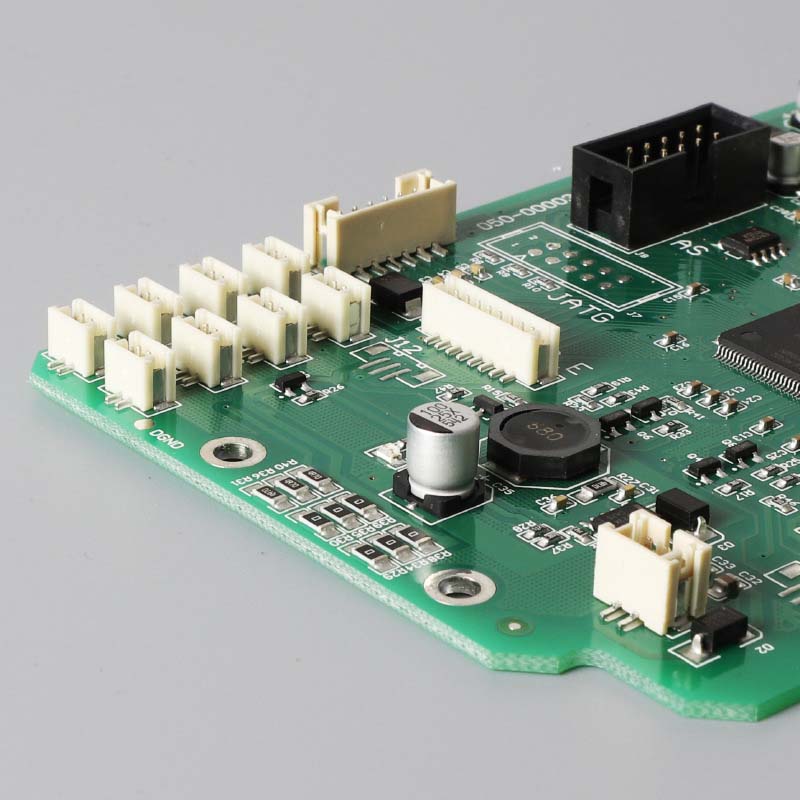

The mixed PCBA assembly process refers to the method of combining surface mount technology (SMT) and through-hole insertion technology on the same circuit board. It is not a simple overlay of technologies but a system-level optimization scheme aimed at balancing electrical performance, mechanical strength, and production cost. Its core advantages and functions are as follows:
1. Complementarity of Performance and Space
SMT components are tiny in size, support high-density integration, and can meet the requirements of miniaturization and high-frequency, high-speed electronic products. DIP components (such as transformers, high-power electrolytic capacitors, and terminal blocks) have stronger power-bearing capacity and mechanical adhesion. The mixed assembly process allows designers to combine precision control parts with high-power and external interface parts in a limited space, ensuring both circuit compactness and stability of key components.
2. Improvement of Reliability and Strength
For connectors, relays, and other components that need repeated plugging and unplugging or withstand physical stress, the DIP through-hole soldering method firmly secures them on the PCB, offering vibration resistance and tensile strength far superior to SMT. This combination ensures that products can reliably operate in harsh environments such as automotive and industrial control applications.
3. Optimization of Cost and Efficiency
The mixed assembly process allows engineers to choose the most economical packaging form for different functions, thereby optimizing the overall material cost. In production, using the mature process of 'SMT reflow soldering first, then DIP wave soldering' maximizes production capacity while ensuring quality.
In conclusion, the core function of the mixed PCBA assembly process is inclusiveness, enabling electronic products to achieve miniaturization, high reliability, and cost-effectiveness simultaneously.
