PCBA Component Packages: Which One Fits Your Design?
2026-05-26
Selecting the right component package impacts assembly cost, board space, and reliability.
Here are the five most common packages and when to use each.

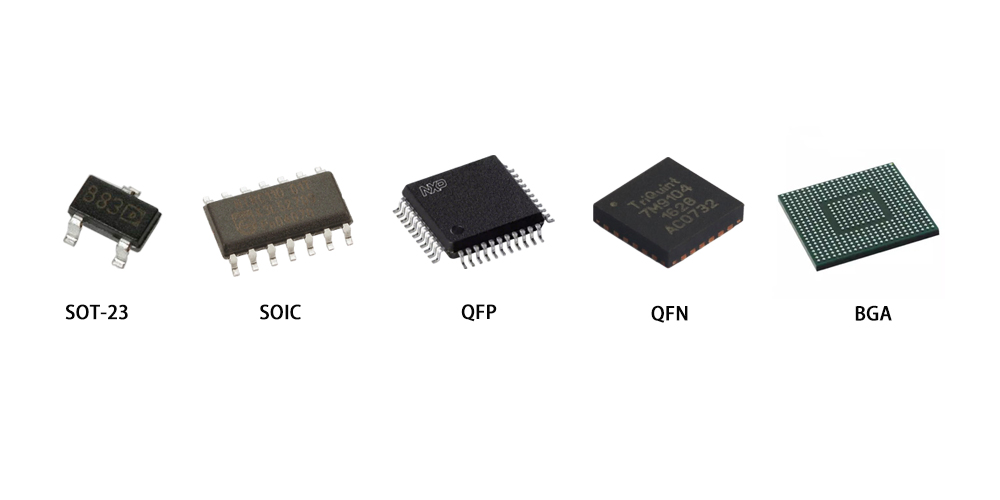

Package Comparison
Package Size Assembly Cost Best For
SOT-23 Small Low Transistors, diodes, small regulators
SOIC Medium Low Op-amps, drivers, logic ICs
QFP Medium-Large Medium Microcontrollers, FPGAs
QFN Small Medium-High Power ICs, RF chips, space-constrained
BGA Small-Large High High-density, high-pin-count (200+ pins)
SOT-23 Small Low Transistors, diodes, small regulators
SOIC Medium Low Op-amps, drivers, logic ICs
QFP Medium-Large Medium Microcontrollers, FPGAs
QFN Small Medium-High Power ICs, RF chips, space-constrained
BGA Small-Large High High-density, high-pin-count (200+ pins)
When to Use Each Package
SOT-23 (Small Outline Transistor)
– 3-6 pins. Cheap and easy to assemble. Use for discrete semiconductors.
SOIC (Small Outline Integrated Circuit)
– 8-28 pins. Hand-solder friendly. Ideal for prototyping and low-volume production.
– 8-28 pins. Hand-solder friendly. Ideal for prototyping and low-volume production.
QFP (Quad Flat Package)
– 32-256 pins. Gull-wing leads are visually inspectable. Good for mainstream MCUs.
– 32-256 pins. Gull-wing leads are visually inspectable. Good for mainstream MCUs.
QFN (Quad Flat No-lead)
– No exposed leads – smaller than QFP. Requires X-ray inspection for hidden solder joints. Best for space-tight designs.
– No exposed leads – smaller than QFP. Requires X-ray inspection for hidden solder joints. Best for space-tight designs.
BGA (Ball Grid Array)
– Highest density. 200+ pins. Requires X-ray and precision reflow. Use when QFP can't fit enough pins.
– Highest density. 200+ pins. Requires X-ray and precision reflow. Use when QFP can't fit enough pins.
Cost vs Density Trade-off
Package Pins per mm2 Assembly Difficulty
SOIC Low Easy
QFP Medium Moderate
QFN High Moderate-Hard
BGA Highest Hard
SOIC Low Easy
QFP Medium Moderate
QFN High Moderate-Hard
BGA Highest Hard
STG Electronic Capabilities
We assemble all five packages in-house:
- SOT, SOIC, QFP – 100% AOI inspected
- QFN, BGA – X-ray inspection on every board
- Mixed packages – Handled seamlessly
